Implen OD600®
Fast, easy, and accurate determination of cell density at 600 nm
Welcome to Implen OD600®: Enhancing Microbial Growth Analysis
Discover the power of Optical Density (OD) measurements with the Implen OD600, designed to streamline microbial and cell growth analysis in your lab.

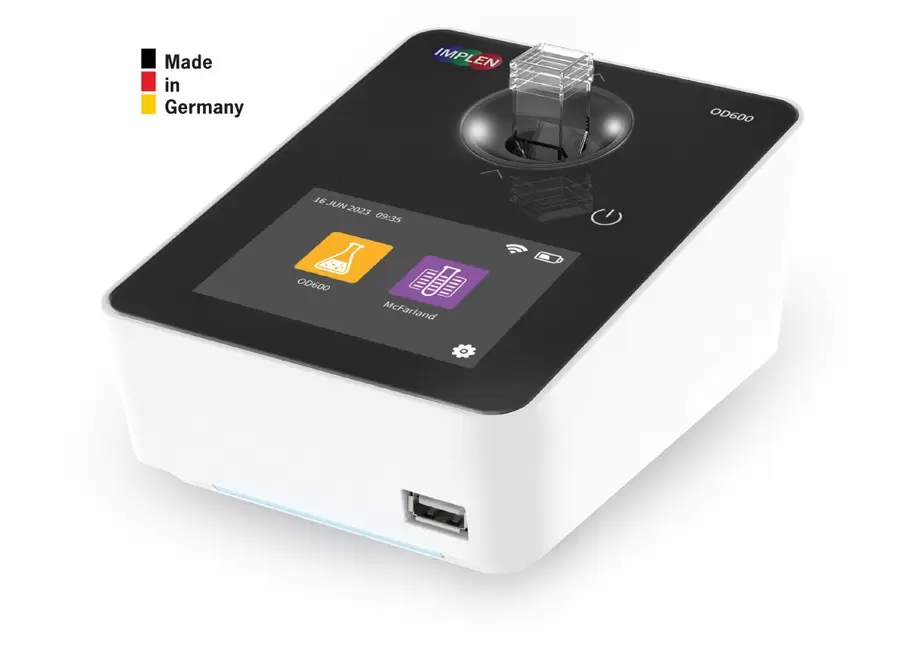

The Implen OD600® is a user-friendly device for measuring sample optical density at ~600 nm, ideal for various applications including cell growth rates and McFarland turbidity measurements.
Key Features of the new Implen OD600®
- Higher absorbance range, accuracy and reproducibility!
- Pre-programmed with Intuitive OD600 & McFarland Applications
- Utmost Compatibility (DiluCell, Cuvette, Tubes) Without Adapters
- Data Export to USB – .xls and .csv Formats
- Easy LIMS integration via WiFi, LAN/Ethernet (REST API PUSH)
- Unlimited mobility, suitable for use in field work, safety cabinets, and also in incubation chambers even under anaerobic conditions*
- Glove-Compatible 3.5″ Touchscreen Display
- Integrated Battery with a Runtime > 8 hours (continuous use)
- High Precision Versatile Measurements, up to 4 A
- User-friendly, Multilingual Interface
- Large Data Storage & Universal Capabilities
- Extremely Lightweight, Compact and Portable
- No Maintenance or Recalibration Needed Ever!
User-Friendly, Robust, and Globally Adaptable for Any Lab
The Implen OD600® comes with the user-friendly design, robust data management capabilities, and seamless integration into LIMS that has helped establish Implen as a premium supplier of laboratory instruments! With multilingual support and adaptable sample compatibility, the Implen OD600® is ideal for diverse laboratory environments worldwide.
Built-in OD600 & McFarland Applications to Measure Bacterial Growth

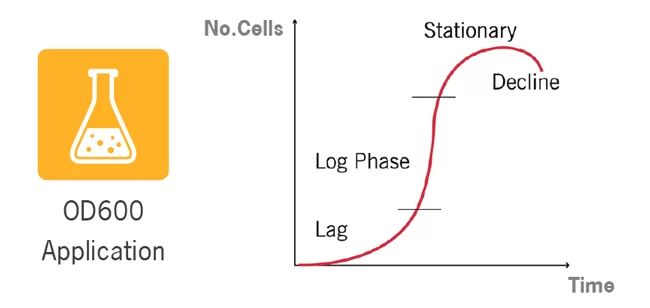

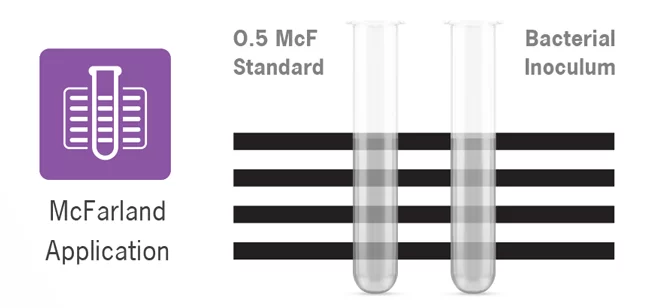

The Implen OD600® device comes equipped with two built-in programs: OD600 and McFarland, complemented by a built-in Sample list function for effortless data management and export. The OD600 program enables the monitoring of bacterial growth in liquid culture media by measuring the optical density at 600 nm (OD600), crucial for determining the stage of growth and ensuring optimal harvesting conditions. With the McFarland program, users can estimate cell suspension density by comparing it to a series of standard turbidity solutions, simplifying tasks such as antimicrobial susceptibility testing and bacterial inoculum preparation. These built-in functions streamline the measurement process, providing accurate and reliable results for a variety of laboratory applications.
An Indispensable Tool for Microbial Growth Analysis in Any Lab
User-Friendly Interface & Utmost Compatibility Without Adapters

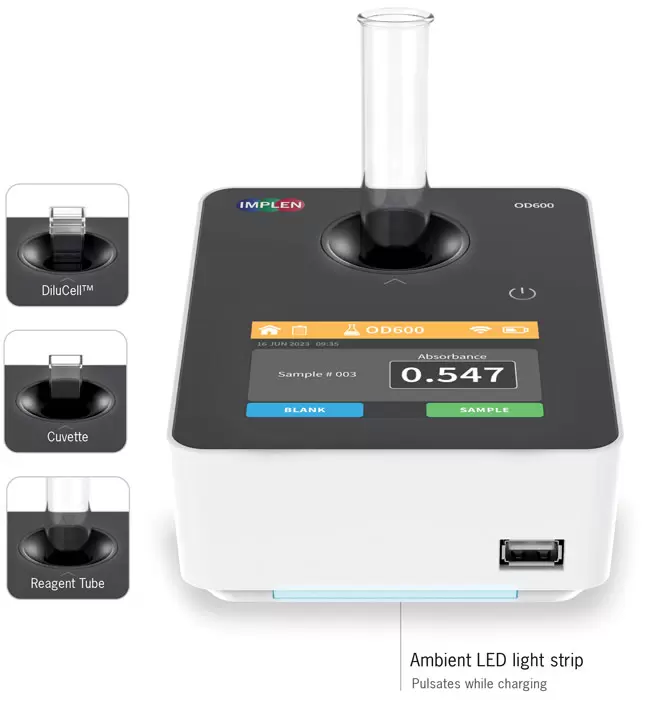

The Implen OD600® features an intuitive, user-friendly interface based on the app system used in the NanoPhotometer® line. The device supports various cuvettes and test tubes without the need for an adapter, including DiluCells, 10 mm macro and semi-micro cuvettes, and 10, 12, 16, and 18 mm glass/falcon tubes.

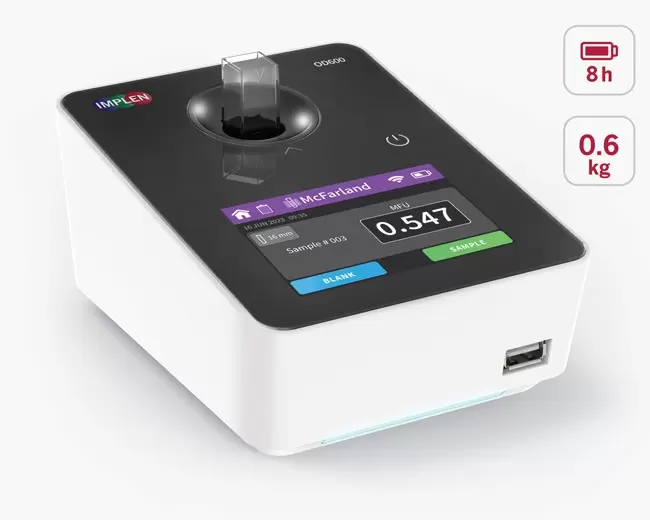

Stand-alone, Lightweight and Portable
The Implen OD600® is a modern, stand-alone device with an integrated battery that offers over 8 hours of uninterrupted operation. It features both an external power adapter and an internal rechargeable battery.
Weighing only 0.6 kg and measuring 140 x 110 x 70 mm, this compact device is easily portable and fits any scientific setup. Its unlimited mobility makes it ideal for use in incubation cabinets and under anaerobic conditions.*
*Certain restrictions or limitations apply. Please contact Support.

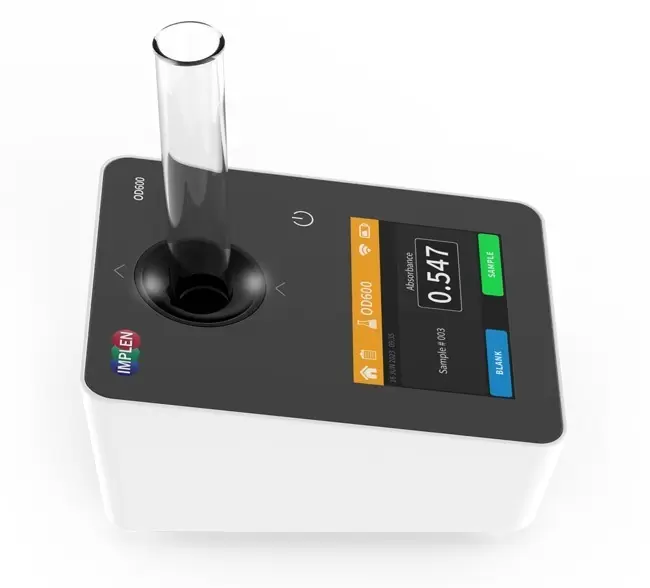

High Precision & Versatile Measurement
Measures growth rates of diverse cell types using OD600 and McFarland methods. The photometric range covers
OD600: 0 – 4 A and McFarland: 0 – 16 MFU.
Reliable and accurate measurements for various cell types, including E. coli and yeast, with an accuracy of
OD600: @ 1A: < ±0.01 A and
McFarland: @ 0 – 8 MFU: ≤ ±0.1 MFU.
No Maintenance Needed EVER!
The device ensures lifetime accuracy and precision without the need for maintenance or recalibration, ever!
Glove-Compatible 3.5″ Touchscreen Display and Easy Maintenance

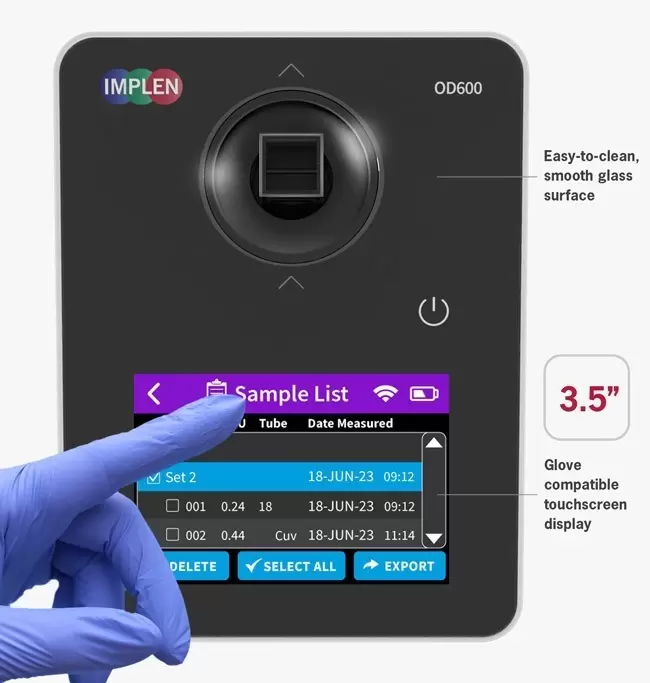

Implen OD600® is user-friendly and easy to operate with a 3.5″ crevice-free, glove-compatible touchscreen with resolution of 480 x 320 pixels in various lab settings. The display features a smooth glass surface ideal for use in laminar flow or biosafety hoods. Additionally, the device can be used in incubation chambers and under anaerobic conditions.* The device is very easy to clean with water, ethanol, or other cleaning agents. The glass plate is completely wipeable, and the cuvette shaft can be wiped, ensuring easy maintenance and hygiene.
*Certain restrictions or limitations apply. Please contact Support.

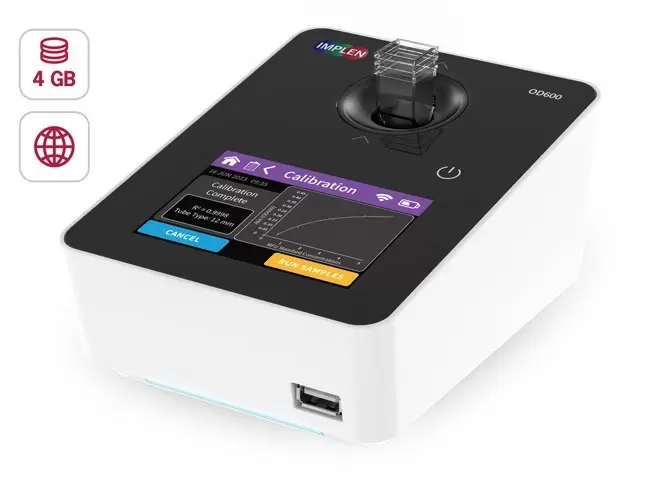

Large Data Storage & Universal Capabilities
The device includes 4GB of internal storage for efficient data management, enabling access to all previously measured sample data through the sample list feature.
The Implen OD600® also features a multilingual interface accessible in English, Chinese, Japanese, German,
Spanish, and French, catering to a global user base.

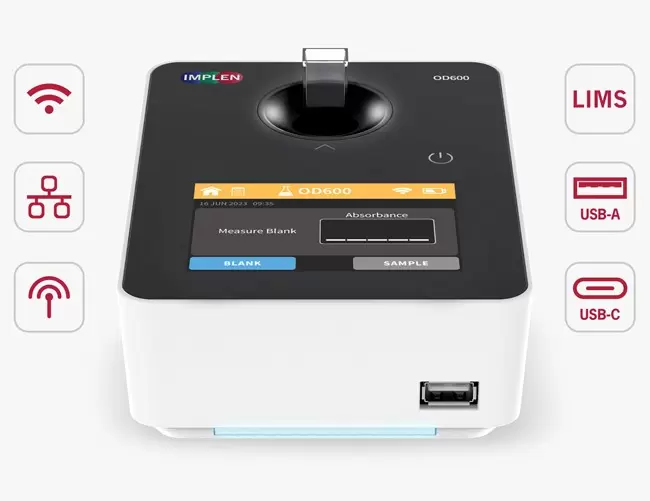

Effortless Data Export & Advanced Connectivity Options
The Implen OD600® instrument features simple data export via USB in .csv and .xls formats, with advanced connectivity options like USB C for charging and USB A port for data export. The device features LIMS integration via WiFi, LAN/Ethernet (REST API PUSH).
